A-FUEL DRAGSTER

The team at Marsh Motorsport would like to acknowledge their sponsor for the A-Fuel Dragster "MOUNT SHOP"

Mount Shop
27 Paramount Drive
Henderson, Auckland
Ph: 09 836-2304
www.mountshop.co.nz

ENGINE:

• 432 cubic inch Hemi
• Billet block and heads
• Runs on 94% Nitro, 6% Alcohol
• Produces 4,400BHP at 6,200 RPM
• Produces 4,800 ft lbs./torque at 4,900 RPM
• Ignition system has 2 x 44 AMP MSD Mags
• Engine has 32 Injectors: 8 for Alcohol and 24 for Nitro
• Fuel pressure varies on the day, but on a high is at 490lbs
• Burns 6 litres fuel per second
• This A/Fuel Dragster can accelerate from 0-100mph (160kph) in 1 second
• This A/Fuel Dragster can accelerate 0-185mph (300kph) in 2 seconds

CHASSIS:

• Chassis is a 300" wheelbase 1999 McKinney Top Fuel Chassis
• This dragster runs no transmission (ie direct drive)
• Diff ratio: 2.9 through a 17" wide, 36" tall Top Fuel slick
• To assist the dragster in stopping it has carbon rear brakes ( i.e. no front brakes)

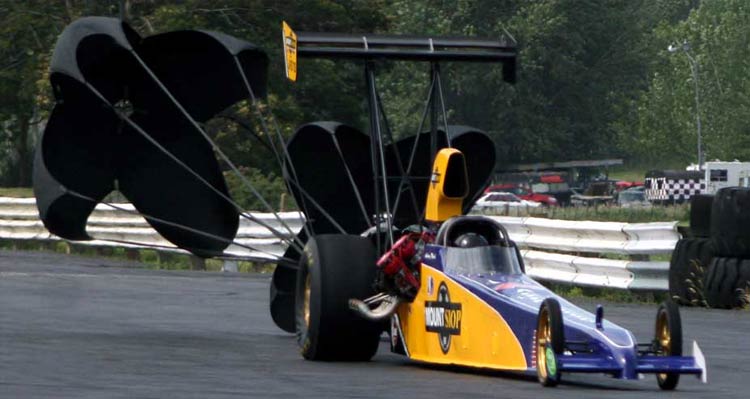

• 2 x 12 foot parachutes

HISTORY:

• This A Fuel Dragster was originally the "Budweiser" Top Fuel Dragster from USA, owned and driven by Father & Son Team, Kenny & Brandon Bernstein
• Once the Bernstein's had completed racing the dragster, the car was stored for approx 7 years
• The Dragster was then purchased by Tom Conway, from Conway Automotive based in Oklahoma. Tom Conway has a long successful history with Top Alcohol and A-Fuel Dragsters in the USA
• Tom has also won 2 x World Championship Titles
• Tom chose 2 drivers to drive the A Fuel Dragster:
  a) Mike Lewis - CEO of Schumacher Racing
  b) Hillary Will - Well Respected Female Top Fuel Racer

NOTES OF INTEREST:

• These Nitro Engines are started on Alcohol and once they reach a certain temperature it is switched over to Nitro
• If you try to start it on Nitro watch out "DUCK", especially A Fuel Engines as they are 14 to 1 and a Top Fuel is only 6.5 - 7 to 1
• Once the A Fuel Dragster has completed its pass on the track and the motor is shut down, then the procedure starts: -
• Driveshaft removed before Dragster is towed back (if the driveshaft was not removed and the motor turned over it would blow a cylinder head off)
• Once back in the pits, all 16 Spark Plugs are removed, and all fuel lines removed off the engine, and blown out with air
• Engine is spun over to pump out excess Nitro
• Failure to follow this procedure would have catastrophical results (ie some USA based teams have spun the engines over and blown a cylinder head clean through their transporters)

In the USA A Fuel Cars are known as "BOMBS" because of their Static Compression Ratio
